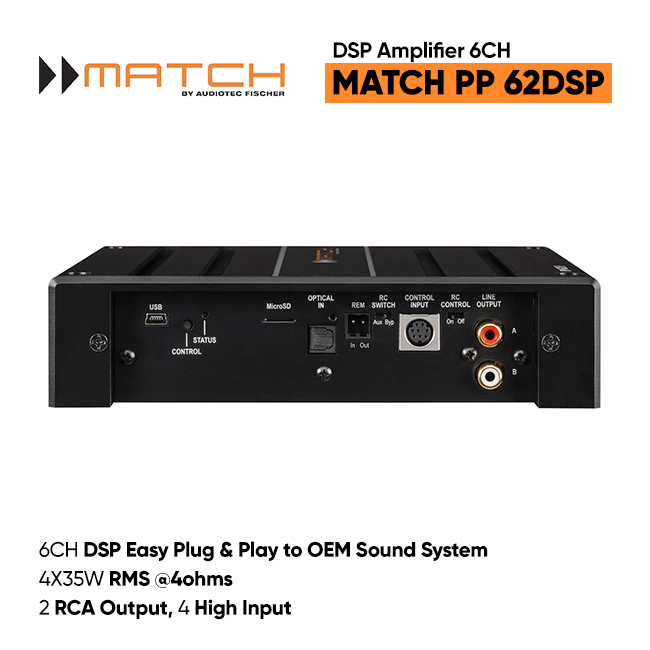

MATCH PP62 DSP Amplifier Processor (4X50W) Plug and Play

Name: MATCH PP62 DSP Amplifier Processor (4X50W) Plug and Play
SKU: 13029
Price: 7700000 IDR
Availability: InStock

(0 customer reviews) 0 sold

Rp7.700.000

Categories: Aksesoris Interior, Audio & Video Mobil

Description

MATCH PP 62DSP provides everything an up-to-date Plug & Play amplifier needs: easy installation and maximum flexibility.

Its installation effortlessly takes place via Plug & Play cable harness which is included in delivery – no cable has to be cut or modified. At www.audiotec-fischer.com the huge online sound setup database provides the appropriate setup.

The MATCH Extension Card (MEC) slot makes it possible to expand the PP 62DSP’s functionality by inserting an optional MEC module – for example a Bluetooth^® Audio Streaming module, an optical digital input or a High Resolution Audio USB soundcard. In addition the PP 62DSP offers the option of hooking up additional amplifiers using the two channel pre-amp output.

Sound enthusiasts get their money´s worth as well – thanks to the professional and user-friendly Audiotec Fischer DSP PC-Tool software it becomes amazingly easy to create individual sound setups. Furthermore the PP 62DSP is optionally configurable as a 6-channel amplifier with a total of 8 DSP channels. Due to the numerous adjustment options it leaves nothing to be desired.

Features

Simple Plug & Play connection to original sound systems using vehicle-specific adapter cables
MATCH Extension Card (MEC) slot for additional input modules like Bluetooth^® Audio Streaming, High Resolution Audio Streaming via USB etc.
Extremely powerful “fixed point” Audio DSP with 56 Bit resolution
Large database of car-specific setups available online
Optionally configurable as 6-channel amplifier with a total of 8 DSP channels
Freely configurable 2-channel PreOut for the connection of additional amplifiers
Adjustable input sensitivity from 11V to 5V
Automatic remote switch
Smart highlevel input with ADEP.2 circuit
Highlevel input EQs
Control input for optional cable remote control
State-of-the-art SMD technology for a more compact design and maximum reliability
Four-layer printed circuit boards for best possible power and signal transmission

Output power RMS / max.
– @ 4 Ohms: 4 x 35 / 70 Watts (Font/Rear channels)
– @ 2 Ohms: 4 x 50 / 100 Watts (Font/Rear channels)-
– bridged @ 4 Ohms –
– bridged @ 2 Ohms –
– Subwoofer output @ 4 Ohms –
– Subwoofer output @ 2 Ohms 1 x 160 / 320 Watts (4 channels each 40 / 80 Watts)

Amplifier technology: Class AB

Inputs: 4 x Highlevel speaker input, 1x MEC, 1 x Remote In
Input sensitivity: Highlevel 5 – 11 Volts
Input impedance: RCA / Cinch –
Input impedance: highlevel 13 Ohms
Outputs 8 x Speaker output
2 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 20 Hz – 22,000 Hz
DSP resolution 56 Bit
DSP power 172 MHz
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input –
Signal-to-noise ratio analog input 103 dB (A-weighted)
Distortion (THD) < 0.01 % Damping factor > 100
Operating voltage 10.5 – 16 Volts (max. 5 sec.down to 6 Volts)
Idle current
670 mA
Max. remote output current 500 mA
Fuse 1 x 20 A Maxi-fuse (APX)
Additional features Variable input sensitivity, fully stabilized internal power supply with Start-Stop capability, 56 Bit digital signal processing, internal memory for 2 different sound setups, USB input, ADEP.2 circuit, Auto Remote switch, MEC slot, input for optional remote control, stereo line outputs with balanced output transformers (floating ground)
Dimensions (H x W x D) 44 x 185 x 139 mm /
1.73 x 7.28 x 5.47“
